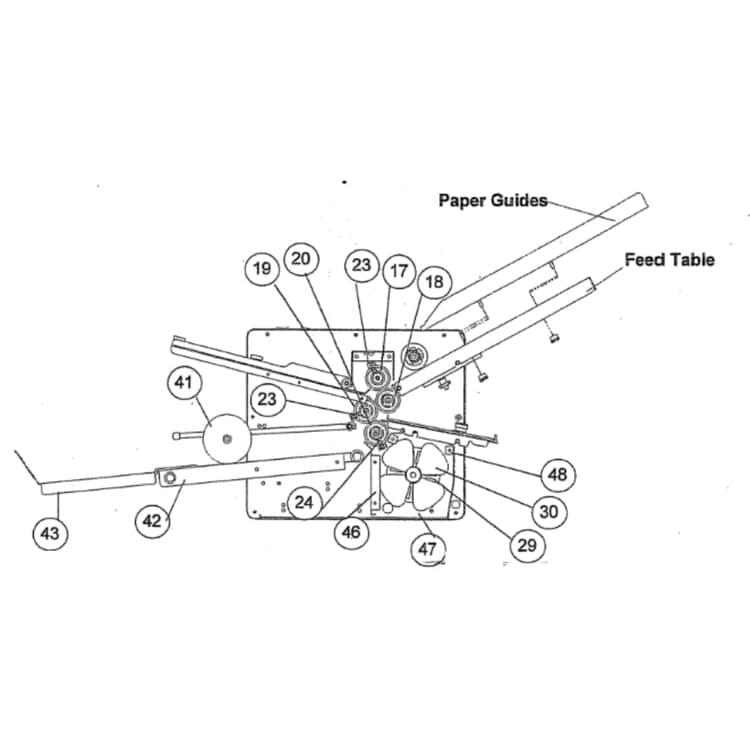

1217A S/N 31450-34601 Paper Guide /Feed Table

Switch between sub-assemblies:

Left Front
Paper Guide /Feed Table
Right Rear

Total Price: $0.00

1217A S/N 31450-34601 Paper Guide /Feed Table

1
97597MYL Feed Table Assembly Martin Yale97597MYL
2
97595MYL Paper Guide Assy., L.S. Martin Yale97595MYL
3
97578MYL Paper Guide Assy., R.S. Martin Yale97578MYL
4
94012MYL Retarder Rubber Roll Assembly Martin Yale94012MYL
$
80
18
Suggested: 1
5
95168MYL 1/4-I/ D/C Thumb Nut Martin Yale95168MYL
$
8
52
Suggested: 1
6
97618MYL Feed Roller Shaft Martin Yale97618MYL
7
97594MYL Feed Wheel Assembly Martin Yale97594MYL
8
97543MYL Clutch Spring Martin Yale97543MYL
9
97535MYL Feed Shaft Pulley Martin Yale97535MYL
10
97556MYL O-Ring Drive Belt Martin Yale97556MYL
11
97550MYL Bearing, Nylon (Nyliner) Martin Yale97550MYL
$
24
93
Suggested: 4
12
95064MYL .505Id X .75Od X .032 Nylon Washer Martin Yale95064MYL
$
5
13
Suggested: 2
13
94976MYL 5133-50 Ext."E" Ring Martin Yale94976MYL
$
5
13
Suggested: 5
14
97542MYL Feed Drive Pulley Martin Yale97542MYL
15
93898MYL #10 X 5/16 Fiber Wsh Martin Yale93898MYL
$
12
14
Suggested: 4
16
93924MYL 8-32 F/M Thumb Knob Martin Yale93924MYL
$
5
51
Suggested: 4
17
97593MYL 1St. Fold Roller, Upper Martin Yale97593MYL
18
97598MYL Main Drive Roller, Long Shaft Martin Yale97598MYL
19
97633MYL Intermediate Fold Roller Martin Yale97633MYL
20
97634MYL Bottom Fold Roller Martin Yale97634MYL
21
94554MYL 3/8 Id Bushing W/Flats Martin Yale94554MYL
$
37
97
Suggested: 6
22
95745MYL Flanged Oilite Perbp Martin Yale95745MYL
Discontinued
23
95276MYL Comp.Spring Martin Yale95276MYL
$
15
76
Suggested: 4
24
95683MYL Barrell Spring Martin Yale95683MYL
Discontinued
25
93848MYL Gear 24T X 3/81D Martin Yale93848MYL
$
41
81
Suggested: 3
26
94550MYL 32T Motor Pulley Martin Yale94550MYL
$
101
19
Suggested: 1
27
97555MYL Capstan Pulley, Bot Martin Yale97555MYL
28
97560MYL Timina Belt 137T Martin Yale97560MYL
29
94552MYL 11Ov Ac Motor Martin Yale94552MYL
$
288
54
Suggested: 1
30
93931MYL 41/2" 4Blade Fan Rhb Martin Yale93931MYL
$
60
92
Suggested: 1
31
97574MYL Capacitor For 11Ov, 20Uf Martin Yale97574MYL
32
94282MYL Fuse Block Martin Yale94282MYL
$
30
96
Suggested: 1
33
95205MYL Fuse 5Amp 110V Martin Yale95205MYL
$
10
94
Suggested: 1
34
93929MYL On/Offmomentary Switch Martin Yale93929MYL
$
84
02
Suggested: 1
35
93930MYL Reversing Switch Martin Yale93930MYL
$
41
83
Suggested: 1
36
97610MYL Conveyor Drive Shaft Martin Yale97610MYL
37
97637MYL Conveyor Shaft Pulley Martin Yale97637MYL
38
97619MYL Conveyor Idler Shaft Martin Yale97619MYL
39
93902MYL 1/2 Clip Bearing Martin Yale93902MYL
$
14
62
Suggested: 2
40
97557MYL Conveyor Belts Martin Yale97557MYL
41
96818MYL Asy Stack Wheels Martin Yale96818MYL
$
179
75
Suggested: 1
42
97622MYL Conveyor Table Martin Yale97622MYL
43
97580MYL Exit Table Martin Yale97580MYL
44
97620MYL Right Side Frame Martin Yale97620MYL
45
97621MYL Left Side Frame Martin Yale97621MYL
46
96206MYL Pnt Chute Martin Yale96206MYL
$
85
00
Suggested: 1
47
96357MYL Pnt Vent Guard Martin Yale96357MYL
$
103
64
Suggested: 1
48
96150MYL Pnt Motor Guard Martin Yale96150MYL
$
76
21
Suggested: 1
49
96248MYL Pnt Roller Cover Martin Yale96248MYL
$
90
62
Suggested: 1
50
95898MYL B/O Rs Roller Bracket Martin Yale95898MYL
$
58
43
Suggested: 1
51
95853MYL B/O Lh Roller Bracket Martin Yale95853MYL
$
56
03
Suggested: 1
52
94792MYL 10-32X3/16 Shcs Martin Yale94792MYL
$
5
16
Suggested: 2
53
96850MYL Asy First Fold Table Martin Yale96850MYL
$
188
66
Suggested: 1
54
93974MYL Asy Rivet 2Nd Fold Table Martin Yale93974MYL
$
253
30
Suggested: 1
55
93987MYL Pnt Paper Stop Martin Yale93987MYL
$
52
93
Suggested: 2
56
93986MYL Z/P Lock Bracket Martin Yale93986MYL
$
44
71
Suggested: 2
57
93923MYL Knob Martin Yale93923MYL
$
16
97
Suggested: 6
58
95254MYL 1St Fold Ruler,1217A Martin Yale95254MYL
$
14
05
Suggested: 2
59
95160MYL 2Nd Fold Ruler Martin Yale95160MYL
$
8
52
Suggested: 2
60
94924MYL Grommet .25Idx.44Od Martin Yale94924MYL
$
5
16
Suggested: 2
61
94894MYL 8-32 X 5/8 Truss Hd Martin Yale94894MYL
$
5
16
Suggested: 2
62
94834MYL 8-32 Hex Keps Nut Martin Yale94834MYL
$
5
16
Suggested: 2
63
97987MYL Feed Table Pins Martin Yale97987MYL
$
10
91
Suggested: 3
64
95684MYL Tapered Index Pin Martin Yale95684MYL
$
43
97
Suggested: 1
65
97540MYL Tie Rod Martin Yale97540MYL
66
97544MYL Right Side Cover Martin Yale97544MYL
67
97545MYL Left Side Cover Martin Yale97545MYL
ZZ
95719MYL Pnt Motor Support Bracket Martin Yale95719MYL
$
46
87
Suggested: 1
ZZ
94925MYL Sr 15-1 Heyco #1374 Martin Yale94925MYL
$
5
16
Suggested: 1
ZZ
94276MYL 115V Usa Line Cord Martin Yale94276MYL
$
70
24
Suggested: 1
