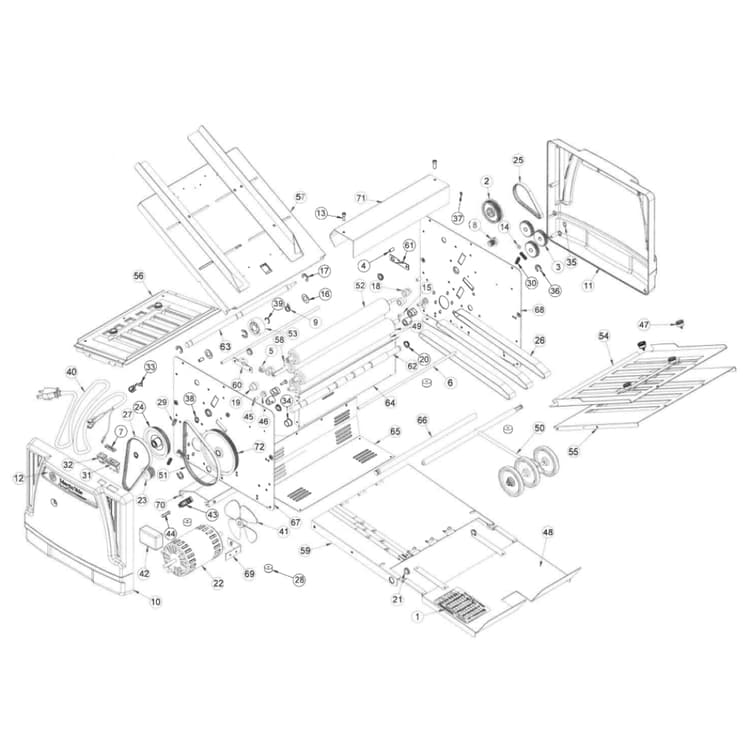

1217A S/N 34602-49999 Main

Switch between sub-assemblies:

Total Price: $0.00

This diagram updates automatically based on the selected sub-assembly. Try clicking a different one to see it change.

1
95520MYL Inst. Nameplate Martin Yale95520MYL
$
31
99
Suggested: 1
2
96664MYL 60T Tab Drive Pulley Martin Yale96664MYL
$
154
64
Suggested: 1
3
93848MYL Gear 24T X 3/81D Martin Yale93848MYL
$
41
81
Suggested: 3
4
97987MYL Feed Table Pins Martin Yale97987MYL
$
10
91
Suggested: 3
5
95684MYL Tapered Index Pin Martin Yale95684MYL
$
43
97
Suggested: 1
6
97540MYL Tie Rod Martin Yale97540MYL
7
97541MYL 1217 Reversing Label Martin Yale97541MYL
8
97638MYL 15T Ht 3Mm Pulley Martin Yale97638MYL
9
97543MYL Clutch Spring Martin Yale97543MYL
10
96530MYL Cover,Rh,Pc,W/Switch Martin Yale96530MYL
$
124
18
Suggested: 1
11
93856MYL Cover,Lh,Pc,W/O Swt Martin Yale93856MYL
$
124
18
Suggested: 1
12
97546MYL Label Logo Martin Yale97546MYL
$
1
65
Suggested: 2
13
94792MYL 10-32X3/16 Shcs Martin Yale94792MYL
$
5
16
Suggested: 2
14
94834MYL 8-32 Hex Keps Nut Martin Yale94834MYL
$
5
16
Suggested: 2
15
94894MYL 8-32 X 5/8 Truss Hd Martin Yale94894MYL
$
5
16
Suggested: 2
16
94865MYL #6Id Internal Lock Martin Yale94865MYL
$
5
16
Suggested: 2
17
94976MYL 5133-50 Ext."E" Ring Martin Yale94976MYL
$
5
13
Suggested: 3
18
94554MYL 3/8 Id Bushing W/Flats Martin Yale94554MYL
$
37
97
Suggested: 6
19
97532MYL 3/8 Id Flanged Bushing Martin Yale97532MYL
20
97550MYL Bearing, Nylon (Nyliner) Martin Yale97550MYL
$
24
93
Suggested: 4
21
93902MYL 1/2 Clip Bearing Martin Yale93902MYL
$
14
62
Suggested: 2
22
97631MYL 110V Ac Motor Martin Yale97631MYL
22
97533MYL 220V Ac Motor Martin Yale97533MYL
23
94550MYL 32T Motor Pulley Martin Yale94550MYL
$
101
19
Suggested: 1
24
97629MYL 80T Combo Pulley Assy Martin Yale97629MYL
25
97576MYL 84 Gry Hmi 3Mm Belt Martin Yale97576MYL
26
97548MYL Conveyor Belt Martin Yale97548MYL
Discontinued
27
93915MYL 140T 3Mm Htd Belt Martin Yale93915MYL
$
58
74
Suggested: 1
28
93918MYL 755 Rw Bumper Martin Yale93918MYL
$
5
51
Suggested: 4
29
95276MYL Comp.Spring Martin Yale95276MYL
$
15
76
Suggested: 4
30
95683MYL Barrell Spring Martin Yale95683MYL
Discontinued
31
93929MYL On/Offmomentary Switch Martin Yale93929MYL
$
84
02
Suggested: 1
32
93930MYL Reversing Switch Martin Yale93930MYL
$
41
83
Suggested: 1
33
94925MYL Sr 15-1 Heyco #1374 Martin Yale94925MYL
$
5
16
Suggested: 1
34
94274MYL Panel Bushing,Ub-625 Martin Yale94274MYL
35
93899MYL 5100-37 Ext Ret Ring (Small Retaining Ring) Martin Yale93899MYL
$
5
13
Suggested: 3
36
94224MYL 5100-50 Ext Ret Ring (Large Retaining Ring) Martin Yale94224MYL
$
23
69
Suggested: 4
37
94975MYL 5100-25 Ext.Ret.Ring Martin Yale94975MYL
$
5
16
Suggested: 1
38
94980MYL 5555-37 Gripring,Ext Martin Yale94980MYL
$
5
16
Suggested: 2
39
97549MYL 5103-50 C-Ring Martin Yale97549MYL
40
97534MYL British Line Cord, 3 Amp Martin Yale97534MYL
40
94278MYL Power Cord (220V) Martin Yale94278MYL
$
116
57
Suggested: 1
40
94276MYL 115V Usa Line Cord Martin Yale94276MYL
$
70
24
Suggested: 1
41
93931MYL 41/2" 4Blade Fan Rhb Martin Yale93931MYL
$
60
92
Suggested: 1
42
97567MYL Capacitor For 220V, 8Uf Martin Yale97567MYL
42
96466MYL Matchbox Style Capacitor Martin Yale96466MYL
$
114
58
Suggested: 1
43
95491MYL Fuse Block 3Ag Sing Martin Yale95491MYL
$
29
72
Suggested: 1
44
95205MYL Fuse 5Amp 110V Martin Yale95205MYL
$
10
94
Suggested: 1
46
94986MYL 1/4X3/8X.17Id Spacer Martin Yale94986MYL
$
5
16
Suggested: 2
47
93923MYL Knob Martin Yale93923MYL
$
16
97
Suggested: 2
48
97632MYL 1217 Stacking Tray Martin Yale97632MYL
48
94924MYL Grommet .25Idx.44Od Martin Yale94924MYL
$
5
16
Suggested: 2
49
97633MYL Intermediate Fold Roller Martin Yale97633MYL
50
96818MYL Asy Stack Wheels Martin Yale96818MYL
$
179
75
Suggested: 1
51
97575MYL 145 Gry Htd 3Mm Belt Martin Yale97575MYL
52
97599MYL 1St Fold Roller Martin Yale97599MYL
53
96585MYL Feed Wheel Assy Martin Yale96585MYL
Discontinued
54
96850MYL Asy First Fold Table Martin Yale96850MYL
$
188
66
Suggested: 1
55
97606MYL 1St Fold Table Lower Martin Yale97606MYL
$
46
87
Suggested: 1
56
93974MYL Asy Rivet 2Nd Fold Table Martin Yale93974MYL
$
253
30
Suggested: 1
57
97597MYL Feed Table Assembly Martin Yale97597MYL
58
97598MYL Main Drive Roller, Long Shaft Martin Yale97598MYL
59
97596MYL Conveyor Table W/Decal Martin Yale97596MYL
60
95898MYL B/O Rs Roller Bracket Martin Yale95898MYL
$
58
43
Suggested: 1
61
95853MYL B/O Lh Roller Bracket Martin Yale95853MYL
$
56
03
Suggested: 1
62
97626MYL Chute, 220V Martin Yale97626MYL
63
97625MYL Feed Roller Shaft Martin Yale97625MYL
64
96206MYL Pnt Chute Martin Yale96206MYL
$
85
00
Suggested: 1
65
96357MYL Pnt Vent Guard Martin Yale96357MYL
$
103
64
Suggested: 1
66
97619MYL Conveyor Idler Shaft Martin Yale97619MYL
67
97620MYL Right Side Frame Martin Yale97620MYL
70
96150MYL Pnt Motor Guard Martin Yale96150MYL
$
76
21
Suggested: 1
71
96248MYL Pnt Roller Cover Martin Yale96248MYL
$
90
62
Suggested: 1
72
97547MYL 120T Hto 3Mm Pul-Ley Martin Yale97547MYL
88
97621MYL Left Side Frame Martin Yale97621MYL
89
95719MYL Pnt Motor Support Bracket Martin Yale95719MYL
$
46
87
Suggested: 1
